Yeast production line,Fermenter|bioreactor(50L-10000L-CGMP)

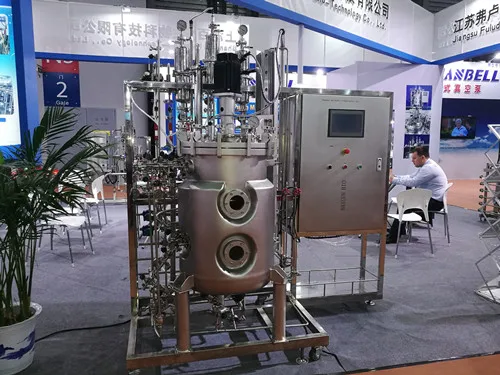

The SIP fermentor generation the Blbio-S/C , designed for meeting demanding requirements in process development and production. Automated Sterilization in Place (SIP) Automated Cleaning In Place (CIP) Space saving design and to save time Full qualification support
1000L total volume Working volume: 700 liters Material: 316L stainless steel with material contact to the other 304 stainless steel Sterilization method: Manual situ sterilization(Optional automatic sterilization procedures) Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be remotely connected to the computerthrough the USB interface, the data
Working volume 500 to 700 liters and The main material of the fermenter is made by 316Lstainless steel. The design pressure: P(inside)= 0.3Mpa, P(interlayer)= 0.3Mpa, The polishing precision: Ra0.4~0.6, the ratio between diameter and height: 1:2.2.
Stirring system Mechanical sealing system at the top of the fermenter; high-powered stirring oar, antifoam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 70~500rpm±1%,The height of the stirring oar can be adjusted, too.
Temperature detection and control Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), autocontrol (cooling water+5℃)~65℃±0.1℃,temperature probe(US).
pH detection and control 2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor (Mettler, Switzerland) and shielding lead (Mettler, Switzerland). Fermenter is autocontrolled with peristaltic pump.
DO detection and control 0-150±3% displaying precision 0.1%, sensor (Mettler, Switzerland) and shielding lead(Mettler, Switzerland)
Feed control fermenter uses peristaltic pump (Longer) to add meterials
Antifoam control Tested by sencor and added antifoamer by peristaltic pump
Intake control (air) :manual control rotameter
pressure detection and control Pressure Control: Pressure meter and digital display and digital remote control, pressure control
we are compliant fermentation equipment for research, development, pilot and production applications. Our Factory in China. We provide the fermentor products including : Stainless steel fermenter, Pilot combo stainless steel fermentor, glass fermentor, fermenter, Multi-Union fermenter,Multi-stagefermentation tank,and shaking Incubators , Positive join stainless steel fermentor.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
1. Factory sales equipment.
2. Professional technology, complete specification and reasonable price. 3. MOQ 1unit.
4. ISO CE certification. 5. The strong support of advanced tachnology and detection capability. 6. 20 years experience. 7. 200unit output per month. 8. Professional service including installation guide. 9. Quickly delivery about 1-3months.
A supplier and technology service provider who supplies complete sets of bioreactor (fermenter) and the control system. The products include microbial reactor (fermenter), animal cell bioreactor. bioreactor shaking table, biological table, bottle rocker and bioreactor control system and so on. We can also produce bioreactors of more than 0.1L--1000KL capacity. We have made great contributions to push the cause of China's bioreactors production towards the world.
Our customers are from different countries and regions all over the world, ranging from Europe, America, Southeast Asia, Middle Asia, Africa and Russia.
In 2010, we have attained the ISO9001 quality system certification. Our company's products are manufactured in strict accordance with international standards.
Q: What's your MOQ? A: 1 unit.
Q: Do you accept OEM ? A: Yes.
Q: Are you manufacture of fermenter/bioreactor? A: Yes.
Q: Do you provide after sales service, training and installation? A: Yes.
Q: Have warranty or not? A: Yes, have 1 year international warranty.
